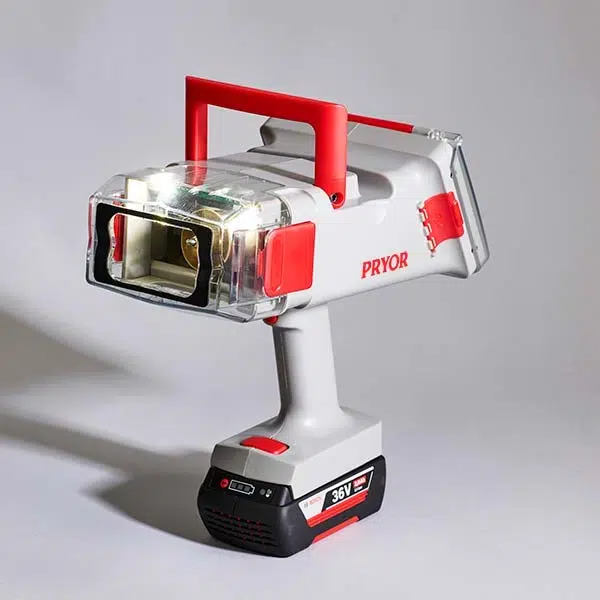

Pryor PortaDot 60-30 Touch

We are very proud of our NEW all-in-one portable dot peen marking machine, The PortaDot 60-30 Touch. The first marking machine to feature our new 4000 integrated control system.

The PortaDot 60-30 Touch is an extremely versatile, lightweight, and mobile handheld marking machine with a marking window of 60mm x 30mm. It is powered by a Bosch 36V battery for ‘all day’ use and features patented technology to ensure that the marking force does not deteriorate as the battery power depletes. The new integrated control system is based on our 4000 Series Controller and has many of the same functions and features, all packaged within the marking head for ultimate mobility. Marking programs can be created, edited, and saved directly to the marking machine using the 5.7-inch touch screen display so that they can then easily be loaded the next time that program is required.

It provides a fast, convenient method of marking a huge variety of parts in multiple locations.

  • All-in-one marking solution with touchscreen control
  • Uses Pryor’s latest embedded control system integrated into the marking head
  • All marking data is backed up to internal storage with an option to export via USB
  • Touchscreen protector and stylus supplied as standard
  • The standard machine is supplied with:
    • 1x Bosch 36V batteries
    • 1x battery charge and mains charging cable (UK, USA, & EU options available)
    • Robust carry case for transport and storage


  • Fully Portable, Lightweight Dot Peen Marking Machine
  • 60mm x 30mm marking window
  • High Power 36V, quick changeover,  battery for deeper marking applications.
  • Fully programmable touch screen interface with built-in screen-protector and stylus
  • Suitable for engraving identification marks, logos or 2D barcode information
  • Can permanently mark most engineering materials up to a maximum hardness of 62Hrc
  • Standard Character Sizes: 0.19mm – 59.9mm in increments of 0.19mm (5×7 font) or 0.25mm (7×9 font)
  • Dimensions: 295mm(H) x 170mm (W) x 303mm (L)
  • Weight: Marking head/battery: 3.7kg
  • Drive Mechanism: XY precision lead screws
  • Adjustable face mask with horizontal and vertical ‘V’ grooves for tube/pipe marking.
  • Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, QR Code, HPGL, BMP Logos
  • Connectivity options: USB A (USB Flash drive, USB Keyboard), USB B (PC USB-Com Connectivity), WiFi  802.11/b/g/d/h/i/n 2.4GHz (Wireless scanners, data logging, network interfacing)
  • MS Excel (*.csv) marking and logging modes.
  • Program memory capacity: up to 9000 layouts
  • Integrated LED lighting with tilt activation
  • On-screen mark preview and trial run features
  • Rugged carry case
  • High-Speed Battery Charger: AC Input 50/60Hz; 100-240VAC
